Rollformed Screen Bars:
- GES-124 5/16" x 3/4"
12Ft. White
-
Uses .160 Spline With Fiberglass Screen
-
Uses .160 Spline With Aluminum Screen
- GES-125 3/8" x 3/4"
12Ft. White
- Uses .160 Spline With Fiberglass Screen
- Uses .160 Spline With Aluminum Screen
GES-126
7/16" x 3/4" 12Ft.
White
Uses .160 Spline With Fiberglass Screen
Uses .140 Spline With Aluminum Screen

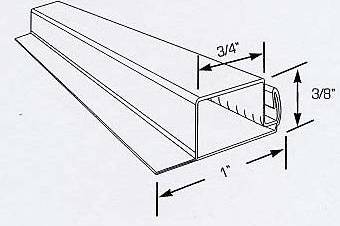

- GES-128
3/8" x 3/4" with lip 12Ft.
White
- Uses .160 Spline With Fiberglass Screen
- Uses .160 Spline With Aluminum Screen

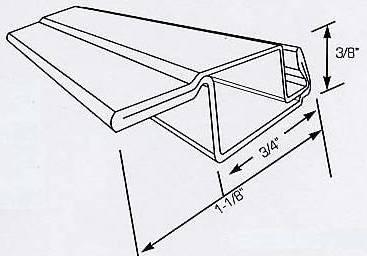

- GES-129
3/8" x 3/4" with lip 12Ft.
White
- Uses .200 Spline With Fiberglass Screen
- Uses .180 Spline With Aluminum Screen

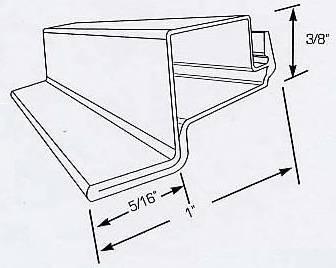

- GES-130
3/8" x 3/4" with step lip
12Ft. White
- Uses
.160 Spline With Fiberglass Screen
- Uses .160 Spline With Aluminum Screen
- GES-120
1/4" x 5/8" Cross Bar
12Ft. White
Extruded Screen Bar:

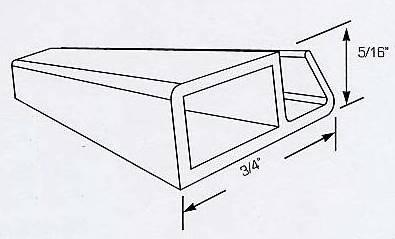

- GES-102
5/16" x 3/4" 12Ft.
#17 Clear & # 40 Bronze
- Uses .180 Spline With Fiberglass Screen
- Uses .170 Spline With Aluminum Screen
- GES-113
5/16" x 3/4" x 1" with Leg
12Ft. #17 Clear & # 40 Bronze
- Uses .180 Spline With Fiberglass Screen
- Uses .170 Spline With Aluminum Screen

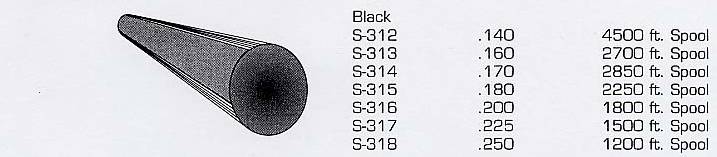

Polyfoam Screen Spline:
- GES-312
/ 313 / 314 / 315 / 316 / 317 / 318

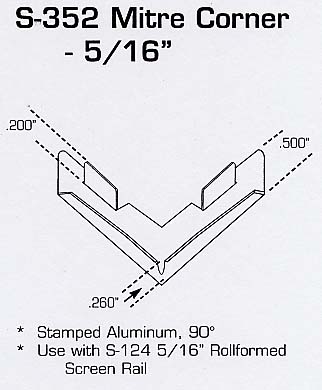

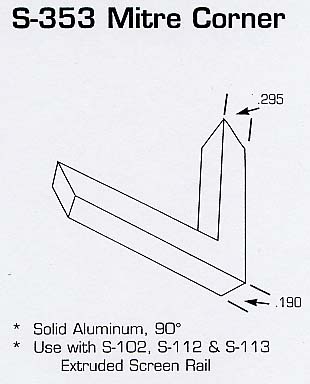

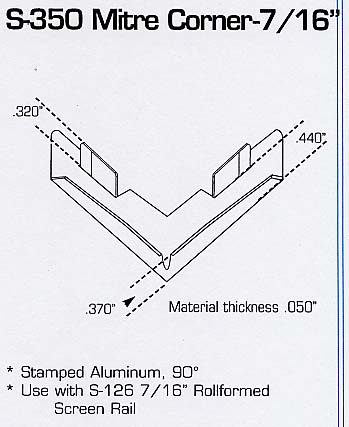

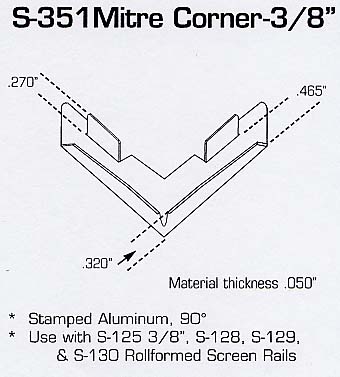

Metal
Mitre Corners:

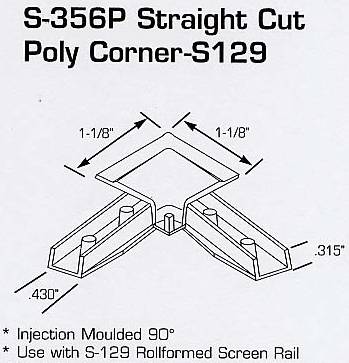

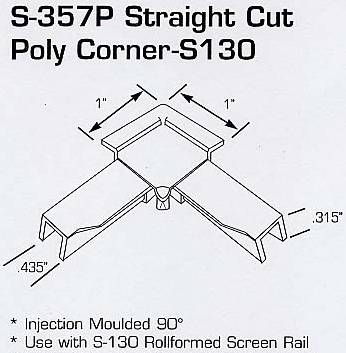

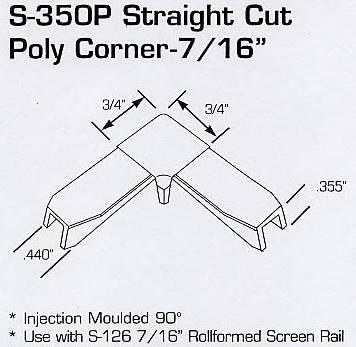

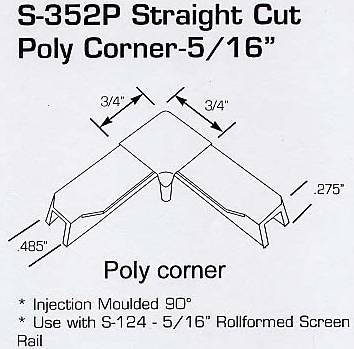

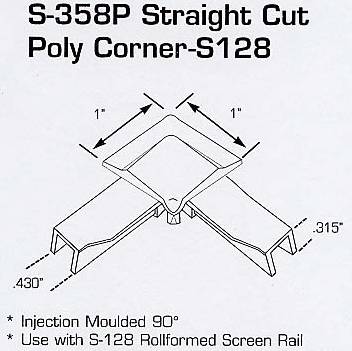

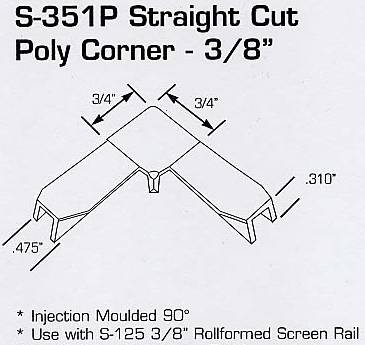

Straight
Cut Poly Corners:


Vinyl Screen Tracks And Storm Panel Moldings:
- GES-203
7/16" x 7/16" 12Ft.
White
- For GES-125 3/8" Screen Bar.
- GES-205
1/2" x 7/16" 12Ft.
White
- For GES-125 7/16" Screen Bar.

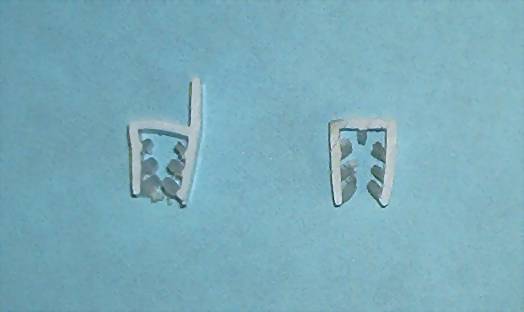

- GES-VSPM-h
Storm Panel Molding
12Ft. White
- GES-VSPM-U
Storm Panel Molding
12Ft. White
- For 2mm Or 3mm Glass
Accessories:
- GES-423
/ 424
Lance Latches (LH or RH)
- GES-481M
1/4" Dia. Spring Bolt Assembly (Metal)
- GES-486M
1/8" Dia. Spring Bolt Assembly (Metal)
- GES-436 5/16" Metal Turn Clip (Zinc Plated)
- GES-436P
5/16" Plastic Turn Clip (White)
- GES-440 1" Metal Turn Clip (Zinc Plated)
- GES-440P 1" Plastic Turn Clip (White)
- GES-501
Flush Turn Clip (White)
- GES-500
Screen Pull Handle (White)
- GES-428
Compression Spring
- 3/16" Dia. Holes Required
- GES-427
Corner Compression Spring
Tools:
- GES-120
1/8" Step Drill
- GES-121
3/16" Step Drill
- GES-122
1/4" Step Drill

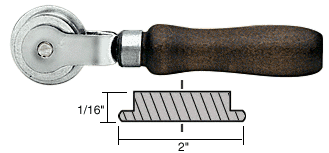

- GES-130
Screen Spline Step Roller (Shown)
- GES-131
Screen Spline Concave Roller
- GES-132
Screen Spline Convex Roller
Screen Cloth:
- GES-BFS-24" / 36" / 48" /
72"
Black Fiberglass 100Ft. Rolls
- GES-GFG-24" / 36" / 48"
Gray Fiberglass 100Ft. Rolls
- GES-BARS-48"
Black Animal Resistant
100Ft. Rolls
- GES-BLAS-24" / 36" / 48"
Black Aluminum 100Ft. Rolls
- GES-BRAS-24" / 36" / 48"
Bright Aluminum 100Ft. Rolls
- Other sizes and White fiberglass available.
